| 브랜드 이름: | LEADYO POWER |
| 모델 번호: | li72v20 |
| MOQ: | 2개 |
| 가격: | $150-$400 |
| 포장에 대한 세부 사항: | UN3480이 포함된 표준 수출 상자 |
| 지불 조건: | T/T, 서부 동맹, MoneyGram, D/A, D/A, L/C |
Ebike Electric Bicycle 72V 20Ah Waterproof Triangle Lithium ion Battery + Battery Indicator + PD Charge Port + 80A BMS
XT 90 ,XT60 and Anderson discharging connector
52V 30A BMS can fit Motor Power: 52V/350W, 52V/500W,52V/750W, 52V/1000W Bafang or Tongsheng Motors or other motors
52V 50A BMS can fit Motor Power: 52V/1000W, 52V/1500W, 52V/2000W motors
52V 70A BMS can fit Motor Power: 52V/1000W, 52V/1500W, 52V/2000W,52V/2500W motors
52V 80A BMS can fit Motor Power: 52V/1500W, 52V/2000W,52V/2500W,52V/3000W, 52V/3500W motors
1) With USB port can charge cell phone and bluetooth speaker
2) New shark style case battery with on/off button, help you save more power
3) Convenient charge port support 5A faster charge
4) Lighted battery LED power Indicator, inform you battery power in anytime
| Item | Specifications | Remark |
| Model No. | 72V 20AH triangle | 21700 cells 20s4p |
| Nominal Voltage | 72V | |
| Nominal Capacity | 20Ah | 20Ah customized or 52V 30Ah |

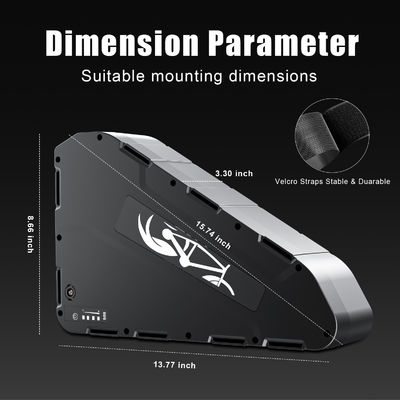

| Dimensions | ||
| Weight | 7.5kg | |
| Cycle Life | ≥1000 times | 80% DOD |
| Charge Voltage | 84V | |
| Discharge Cut-off Voltage | 50V | |
| Max Charge Current | 5A | |
| Max Continuous Discharge Current | 50A | |
| Operating Temperature | Charge: 0℃ ~ 45℃ | |
| Discharge: -20℃ ~ 60℃ | ||
| Storage Temperature | -10℃ ~ 40℃ | |
| Discharge Port | XT90 ,XT60 and Anderson | |
| BMS Function | Over-charge protection, over-discharge protection, over-current protection, over temperature, balancing, etc. | |
| IP Class | IP65 | |
| Case Material | ABS |

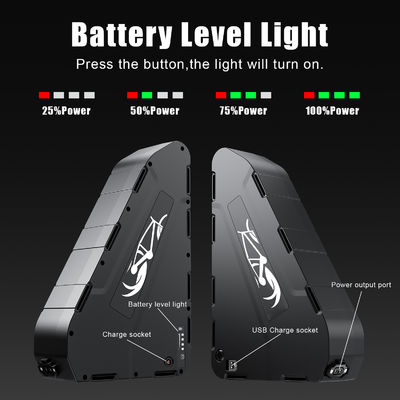

Battery Level Light and Port
LED lights provides precise showing tracking, ensuring users stay informed about remaining runtime.

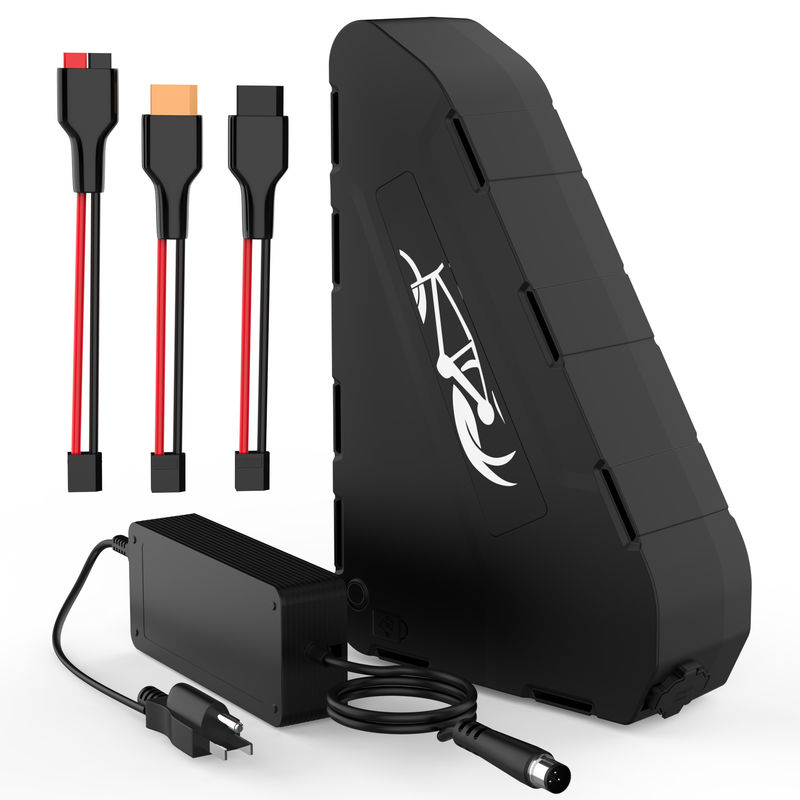

Multiple discharge plugs are packed with the battery pack
Main swith

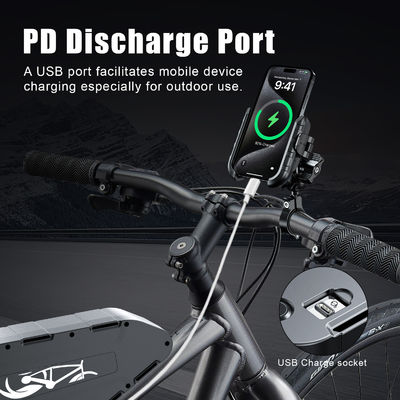

USB Charge for protable devices .

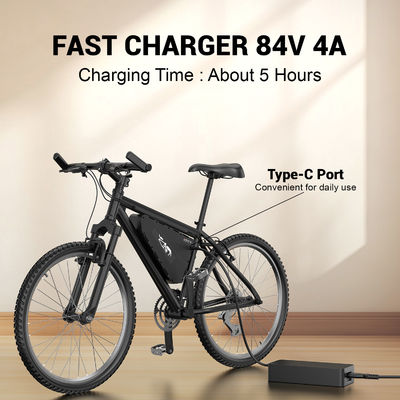

DC fast charge .
We can provide lithium e-bike batteries with voltages of 24V, 36V, 48V, and 52V, using 18650 and 21700 cells from both branded and Chinese brands. Welcome to contact us to customize your lithium ion e-bike battery pack.
leadyo@leadyo-battery.com or WhatsApp /wechat : 86 139 2659 5297
|
|
